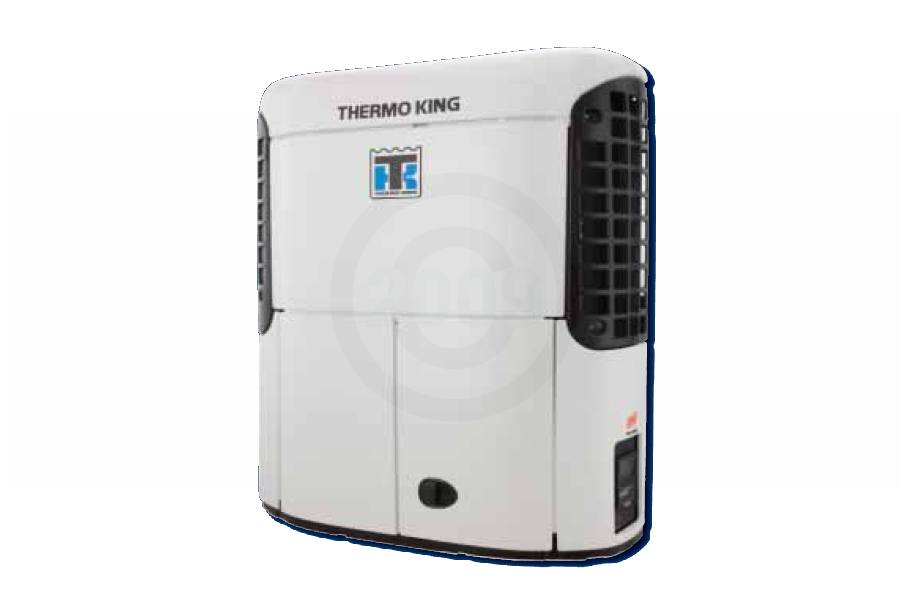

Thermo King SB-200TG
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • High cooling capacity for 53' trailers at low temperatures
  • Ease of use with simple operation for drivers and easy servicing for technicians
  • High cooling capacity to preserve valuable loads
  • High-velocity directional air with uninterrupted flow for greater effectiveness and efficiency
  • Easy-to use microprocessor controller offers single switch operation
Standard Features
  • High cooling capacity
  • Proven componenets for high reliability
  • Unmatched service intervals
  • Microprocessor controller with single-switch operation
  • Directional air delivery for uniform product protection
  • Easy to use, easy to service
  • Backed by the Thermo King nationwide dealer network
Optional Equipment
  • Data Logger
  • Door Switches
  • Remote Status Light
Specifications
  • High-capacity, frontmount,diesel-powered cooling and heating unit
  • Operation: Continuous run/Cycle-Sentry™
  • Operation: Automatic defrost initiation
  • Operation: Programmable defrost timer
  • Refrigeration Capacity: System net cooling capacity at 100°F (38°C) ambient and high-speed engine operation.
  • Ambient Temperature: 100°F, Box Temperature: 35°F(1.7°C); BTU/Hr: 51,000
  • Ambient Temperature: 100°F, Box Temperature: 0°F(-17.8°C); BTU/Hr: 32,000
  • Ambient Temperature: 100°F, Box Temperature: -20°F(-28.9°C); BTU/Hr: 21,000
  • Engine - TK486V direct-injection diesel
  • Engine: Four-cylinder, liquid-cooled
  • Engine: API classified Cl mineral oil after break-in
  • Engine: 15 qt (14.2 liter) oil capacity
  • Engine: 34.0 hp rating operating at 2200 rpm
  • Engine: 3000 hour maintenance intervals
  • Engine: Meets EPA Tier 2 requirements and Interim Tier 4 requirements through 2007 and Interim Tier 4 through 2012
  • Compressor: Model X430L
  • Compressor: 330.0 cu in (491.6 cm') displacement
  • Compressor: Lightweight, aluminum alloy body, heads and sump
  • Compressor: High strength forged crankshaft
  • Compressor: Replaceable cylinder liners
  • Compressor: Vanasil® ringless pistons
  • Compressor: Gerotor oil pump
  • Weight (Unit): 1635 lbs (742 kg)
  • Weight (Fuel Tank, 50 gallon, 1.86 liter): 35 lbs. (16 kg)
  • Dimensions (Condenser): Height: 84.65 in. (2150 mm); Width: 76.11 in. (1933 mm); Depth: 23.26 in. (590 mm)
  • Dimensions (Evaporator): Height: 45.5 in. (1156 mm); Width: 65.62 in. (1667 mm); Depth: 8 in. (203 mm)
Driver Friendly Control
  • Single switch operation
  • Cycle-sentry operation
  • Displays box temp, set point, hour meters, mode verification and alarms
  • Pre-set and programmable defrost intervals
  • Pre-operation unit self-check
Reduced Maintenance
  • EMI-300, Extended Maintenance Interval includes a special 12,000 hour coolant and high grade mineral oil to significantly extend service life.
  • Reduces clean up and disposal costs
  • Reduces environmental impact with less spillage and less waste
  • Extends engine life
  • Reduces maintenance costup to 45% over competitive models
  • Contributes to less operating cost
  • This highly touted package features specially designed oil, fuel and air filters.
Environmentally Friendly
  • Energy efficient
  • Low exhaust emissions
  • Low noise emissions
  • Refrigerant type and charge
  • Extended service intervals for disposable items

Specifications

Capacities
Refrigeration Capacity Ambient Temperature (100°F): Box Temperature 35°F(1.7°C): 51,000 BTU/Hr; Box Temperature 0°F(-17.8°C): 32,000 BTU/Hr; Box Temperature -20°F(-28.9°C): 21,000 BTU/Hr
Engine
Engine Type Direct-injection diesel, Four-cylinder, liquid-cooled
Engine Model TK486V
Engine Rating 34.0 hp rating operating at 2200 rpm
Maintenance Intervals 3000 hour
General
Weight 1635 lbs. (742 kg)
Dimensions Condenser: Height: 84.65 in. (2150 mm), Width: 76.11 in. (1933 mm), Depth: 23.26 in. (590 mm); Evaporator: Height: 45.5 in. (1156 mm), Width: 65.62 in. (1667 mm), Depth: 8 in. (203 mm)

Compare Models

 Print








Year 2009
Manufacturer Thermo King
Model SB-200TG
Style Trailer
Airflow
Airflow Volume
Discharge Velocity (airthrow)
Capacities
Refrigeration Capacity Ambient Temperature (100°F): Box Temperature 35°F(1.7°C): 51,000 BTU/Hr; Box Temperature 0°F(-17.8°C): 32,000 BTU/Hr; Box Temperature -20°F(-28.9°C): 21,000 BTU/Hr
Heating Capacity
Engine
Engine Type Direct-injection diesel, Four-cylinder, liquid-cooled
Engine Model TK486V
Engine Rating 34.0 hp rating operating at 2200 rpm
Maintenance Intervals 3000 hour
General
Weight 1635 lbs. (742 kg)
Dimensions Condenser: Height: 84.65 in. (2150 mm), Width: 76.11 in. (1933 mm), Depth: 23.26 in. (590 mm); Evaporator: Height: 45.5 in. (1156 mm), Width: 65.62 in. (1667 mm), Depth: 8 in. (203 mm)
